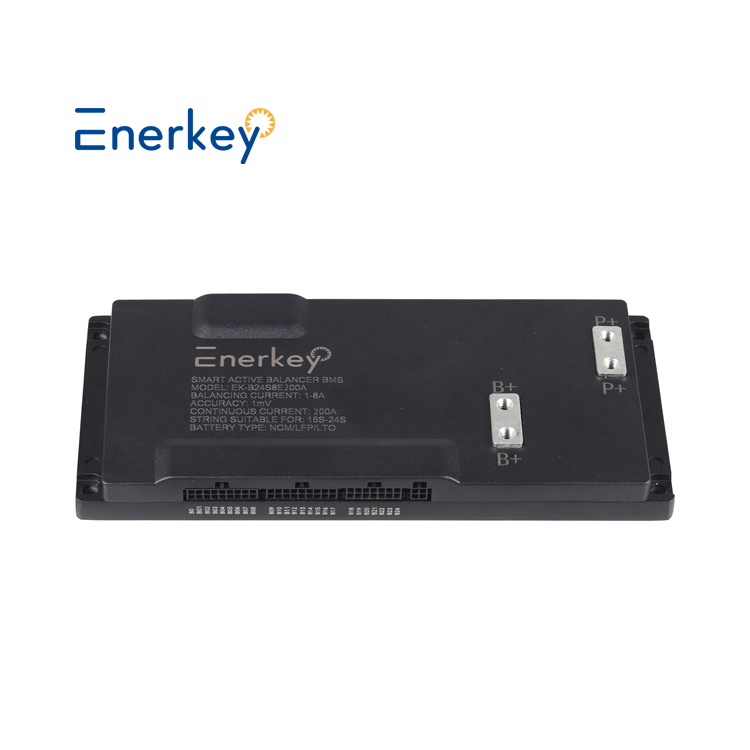

Ağır araçlar için akıllı aktif dengeleyici BMS

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485

Tüm Kategori

Elektrikli çatal kaldırıcı BMS

Ağır araçlar için akıllı aktif dengeleyici BMS

Bizimle İletişim

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Şimdi iletişime geçin

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485

Marka Adı:	Enerkey
Model Numarası:	EK-B24S8E200A
Adedi:	5 parça
fiyat:	$130.5-$136.5
Paketleme Detayları:	Güçlü kağıt kutusu + EVA Köpük
Ödeme Koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Sertifika:

ISO9001/CE/ROHS

Ürün Adı:

16S-24S 200A Akıllı Aktif Dengeleyici BMS

Aktif denge akımı:

1a-8a (ayarlanabilir)

Uygulama:

elektrikli oyuncaklar, elektrikli denge aracı/bisiklet, dış mekan güç kaynağı

Sürekli şarj/deşarj akımı:

15a-200a (ayarlanabilir)

Pil Türü:

Lityum/Lifepo4/LTO/SIB Pil Paketi

Türü:

Aktif Dengeli Bms Kartı

İletişim Portu:

CAN/RS485

Dengeli voltaj doğruluğu:

1mv （ayarlanabilir）

Temel malzeme:

AL/PC/FR-4/HASL

pil dizeleri:

16S-24S (NCM/LFP) 20S-24S (LTO/SIB

Ürün Boyutu:

L237 x W107 x T24.5 （mm）

Paketli Ağırlık:

1.5kg

Yetenek temini:

Günde 10000 adet.

Ürün Tanımı

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485

Product Description

Enerkey BMS Active Balance Smart BMS

● Number of Battery Strings: 16S to 24S(NCM/LFP), 20S to 24S(LTO/SIB)
● Continuous Current: 15A-200A.
● Power supply mode: The battery pack is self-powered.
● Single cell voltage detection range: 1.5V-4.5V
● Support single cell voltage dropout detection.
● Balance current:1A-8A Adjustable, Active Balance (Full State On).
● Wiring method: same port.
● Short Circuit Protection: Support.
● Bluetooth Function: Bluetooth Built-in, Support for Android /IOS Phone.
● Temperature detection: -40～80℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
● Battery remaining capacity: error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
● Operating power consumption: <5mA(without communication)/15mA(485/CAN).
● Standby power consumption: <2mA.
● Operating Temperature: -40~80°C.
● Storing Temperature: -40～85℃

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 0

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 1

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 2

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 3

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 4

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 5

Techinal Parameters

Item	Smart Active Balancer BMS
Product Model	EK-B24S8E200A	EK-B24S8E250A	EK-B24S8E300A
Product size	L237 x W107 x T24.5(mm)
Product weight	1500g
Single cell voltage collection range	1.5V～4.5V
Communication ports	CAN/485
Outlet mode	Same ports
Product material	Aluminum alloy, PC plastic, FR-4/lead-free tin-spraying
Battery protection parameters
Continuous discharge current	120A Default 15A～200A adjustable	120A Default 15A～250A adjustable		120A Default 15A～300A adjustable
Continuous charge current	200A Default 15A～200A adjustable	250A Default 15A～250A adjustable		300A Default 15A～300A adjustable
Battery type	NCM	LFP		LTO
Battery string number	16S～24S	16S～24S		20S～24S
Single cell overcharge protection value	4.200V	3.650V		2.700V
Single cell overcharge recovery value	4.000V	3.450V		2.400V
Single cell undervoltage protection value	2.900V	2.600V		1.600V
Single cell undervoltage recovery value	3.100V	2.900V		1.800V
Equalization parameters
Active balancing current	1A～8A(adjustable)
Balanced voltage accuracy	1mV(adjustable)
Start balancing voltage difference value	0.001V～5.000V(adjustable)
Stop balancing voltage difference value	0.001V～5.000V(adjustable)
Balanced start voltage value	1.500V～4.500V(adjustable)
Balanced stop voltage value	1.500V～4.500V(adjustable)
Temperature protection parameters
Charge over-temperature protection	Default 60℃/30℃～80℃ (adjustable)
Charge over-temperature recovery	Default 50℃/30℃～80℃ (adjustable)
Charge low-temperature protection	Default -2℃/-40℃～20℃(adjustable)
Charge low-temperature recovery	Default 2℃/-40℃～20℃(adjustable)
Discharge over-temperature protection	Default 60℃/30℃～80℃(adjustable)
Discharge over-temperature recovery	Default 50℃/30℃～80℃(adjustable)
Discharge low-temperature protection	Default -10℃/-40℃～20℃(adjustable)
Discharge low-temperature recovery	Default -5℃/-40℃～20℃(adjustable)

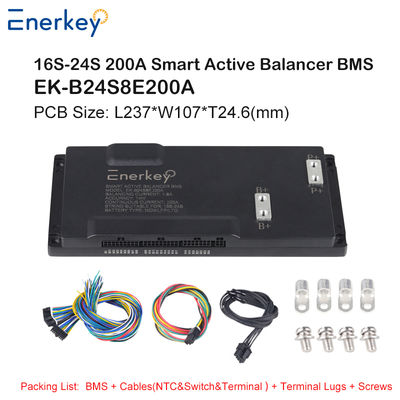

Packing List

Enerkey 16S-24S 1A-8A 15A-200A Smart Active Balancer BMS Lifepo4/Lipo/LTO Battery Balance with Bluetooth APP CAN RS485 6

Wire Diagram

Precautions:

①. Installing the protection equalization board requires a certain amount of electronic knowledge.

②. Welding the cable: The first cable (black line) is connected to the total negative pole of the battery, the second cable (red line) is connected to the positive pole of the first battery string, and the third cable (red line) is connected to the positive pole of the second battery string... and so on, connect all the cables;

③. Detect the cable: After connecting the cable, measure the voltage between two adjacent cables from the head of the cable to confirm that there is no problem of wrong connection or missing connection in the welding sequence of the cable.

④. Connect the B+ line of the protection board to the total positive pole of the battery, and then connect the sampling cable plug to the protection board. After activating the protection board, confirm that the voltage before the board (battery voltage B+.B-) and the voltage after the board (P+.P-) are consistent.

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
