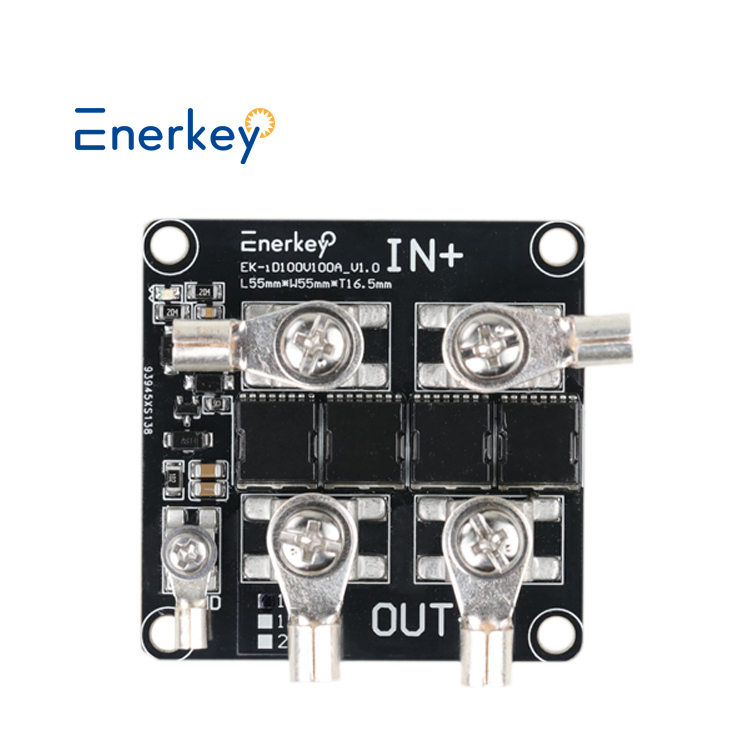

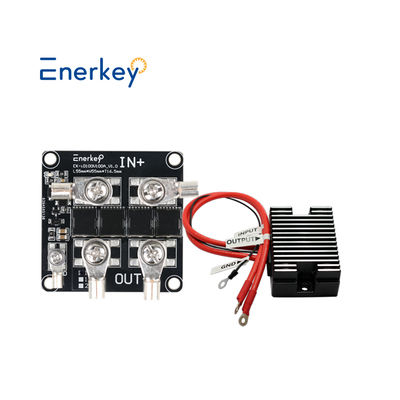

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation

Marka Adı:	Enerkey
Model Numarası:	EK-iD150V100A
Adedi:	10pieces
fiyat:	$26.3-$29.2
Paketleme Detayları:	Strong paper box +EVA Foam
Ödeme Koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

Shenzhen, China

Sertifika:

ISO9001/CE/ROHS

Product name:

150V 100A Ideal Diode Module

Copper Thickness:

Application 1:

Solar Panel and Battery charging anti-backfilling

Board Thickness:

2.0mm

Allowable Operating Voltage Range:

12-150V

Static Working Current:

0.1-1.5mA

Allowable Continuous Current:

0-100A

Base Material:

Aluminum substrate

Peak starting current:

Product Size:

L55xW55xT17mm

Weight with Package:

0.4kg

Supply Ability:

10000pcs per day

Ürün Tanımı

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation

Product Description

Product Overview

The EK-iD150V100A series is an ideal diode solution designed for high-voltage and high-current applications. It utilizes third-generation SGT fast-switching technology to achieve a 150V withstand voltage and 100A continuous current capability. Its package design optimizes heat dissipation and space conservation, making it suitable for a wide range of applications including new energy equipment, industrial power supplies, and security systems.

Core Advantages

✔ Ultra-low on-resistance

On-resistance is only 0.0029Ω (typical), reducing power consumption by 90% compared to traditional Schottky diodes.

Supports 5A/μs fast switching with a reverse recovery time of <50ns.

✔ Intelligent Protection Mechanism

Integrated over-temperature shutdown (175°C) and over-current protection (120A pulse).

Quiescent power consumption is <2μA, extending battery system standby time.

✔ Industrial-grade Reliability

AEC-Q101 automotive-grade qualified, operating temperature range -65°C to 175°C.

Verified by 5 million cycles, MTBF >100,000 hours.

Technical Parameters

Item Specifications Test Conditions

Breakdown Voltage (Vdss) 150V ID = 1mA

Continuous Drain Current 100A Tc = 25°C

Gate Charge (Qg) 180Nc Vgs = 10V

Thermal Resistance (RθJC) 0.5°C/W (Steady-State Operation)

Typical Applications

◼ Photovoltaic inverter backflow prevention circuit

◼ Electric vehicle BMS power path management

◼ Industrial UPS dual power switching system

◼ 5G base station backup power supply ORing architecture

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 0

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 1

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 2

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 3

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 4

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 5

Technical Parameters

Enerkey Ideal Diode Module 100V 150V 200V 100A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD100V100A	EK-iD150V100A	EK-iD200V100A
Working voltage range	12-100V	12-150V	12-200V
Product Size(mm)	L55xW55xT17	L55xW55xT17	L55xW55xT17
Weight with box	0.4kg	0.42kg	0.45kg
MOS quantity	4	4	4
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	100A	100A	100A
Peak starting current	100A	100A	100A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	2.0 oz
PCB material	Aluminum plate
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*5; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

Size & Packing List & Wire Diagram

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 6

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!

150V 100A Ideal Diode Controller Module Solar Panel Battery Charging Anti Reverse Irrigation 7

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

* We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

* Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

* Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

* If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

* Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

* We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

* Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

* We have 7x24 hours online service, Please leave us a message online.

* You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
