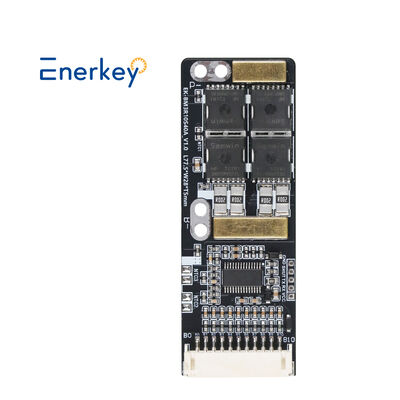

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board

Marka Adı:	Enerkey
Model Numarası:	EK-BM3R10S40A
Adedi:	50pieces
fiyat:	$6.5-$7.2
Paketleme Detayları:	Güçlü Kağıt Kutusu +Eva Köpük
Ödeme Koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Sertifika:

ISO9001/CE/ROHS

Ürün adı:

3S-10S 40A Lityum Pil BMS

Bakır kalınlığı:

Uygulama:

Evde enerji depolama, Elektrikli scooter

Tahta kalınlığı:

1.6 mm

Pil Türü:

Li-iyon/Lifepo4/Lto/SIB

İzin verilen çalışma voltajı aralığı:

0-30V

Nominal Deşarj Akımı:

Pik başlangıç akımı:

İçin kullanılır:

Lityum pil koruma kartı

Anahtar Kelimeler:

3S-10S BMS

Temel malzeme:

Yüzey İşlemi:

Kurşunsuz sprey teneke

Ürün Boyutu:

U77,5xG28xT5mm

Paketle Ağırlık:

0.08kg

Yetenek temini:

günde 1000000 ADET

Ürün Tanımı

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board

Product Description

Product Overview
Enerkey 3S-10S 40A (EK-BM3R10S40A) lithium battery protection board is a safety protection solution tailored for multi-cell lithium battery packs. Utilizing advanced circuit design and intelligent management chips, it provides comprehensive and precise protection for lithium battery packs, effectively extending battery life and ensuring safe use.

Product Features
* Wide Range of Applications: Supports 3S to 10S lithium battery packs, flexibly adapting to battery systems with different voltage requirements. Perfectly compatible with electric bicycles, drones, and energy storage devices.

* Multiple Protection Functions
* Overcharge Protection: When the battery charging voltage exceeds a set threshold, the charging circuit is quickly cut off to prevent overcharging and avoid dangers such as battery swelling, leakage, or even explosion.

* Over-discharge Protection: Monitors the battery discharge voltage in real time. Once it falls below a safe value, the discharge circuit is immediately disconnected to protect the battery from over-discharge and maintain its healthy state.

* Overcurrent Protection: Accurately detects the charging and discharging current. If the current exceeds the rated range, the protection mechanism is activated instantly to prevent battery overheating and damage due to excessive current, ensuring circuit safety.

Short-circuit protection: In the event of a battery short circuit, it can disconnect the circuit in a very short time, preventing serious damage to the battery and equipment from the short-circuit current and ensuring safe use.

High-precision monitoring: Employing high-precision voltage and current detection chips, it can acquire battery status information in real time and accurately, providing reliable data support for the protection functions and ensuring the timeliness and accuracy of protection actions.

Low-power design: While ensuring the normal operation of the protection functions, it greatly reduces its own power consumption, reduces the consumption of battery power, and extends the overall battery life.

High-quality component selection: High-quality electronic components are selected, which have undergone rigorous quality testing and aging tests, exhibiting good stability and reliability, and can operate stably for a long time in various harsh environments.

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 0

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 1

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 2

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 3

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R10S40A
		Product Size(mm)	L77.5W28T5
		Product Weight(kg)	0.08
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S - 10S		3S - 10S		3S - 10S		3S - 10S
		Rated discharge current	40A		40A		40A		40A
		Peak starting current	80A		80A		80A		80A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	45A/2S, disconnect load or activate charging
		②Overcurrent protection value	80A/0.5S, disconnect load or activate charging
		Short circuit protection value	100A/128uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

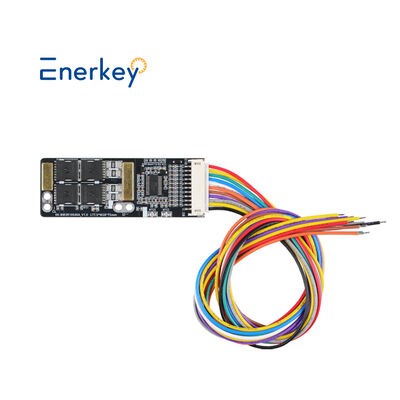

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 4

Wire Diagram

Enerkey 3S-10S 40A Bms Lithium Battery BMS with NTC Li-ion/Lifepo4/Lto/SIB Lithium Battery Protection Board 5

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
